Learn how to use Illustrator’s Live Paint feature, Graphic Styles and Transform Effect while creating a realistic dartboard. All of the features used in this intermediate-level tutorial are contained in Illustrator CS2 and later.

Final Image Preview

Below is the final image we will be working towards. Want access to the full Vector Source files and downloadable copies of every tutorial, including this one? Join Vector Plus for just 9$ a month.

Tutorial Details

• Program: Adobe Illustrator
• Version: CS2 and later
• Difficulty: Intermediate
• Estimated Completion Time: 2.5 hours

PART I: The Board

Step 1

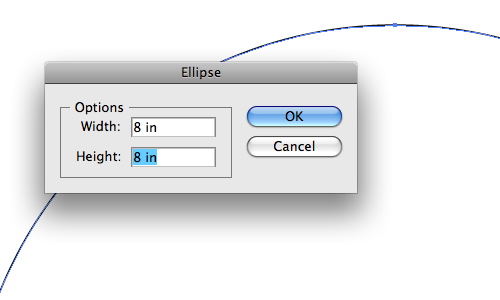

Draw a perfect circle with the Ellipse Tool (L), by clicking once on the Artboard, and entering 8 inches in both the Width and Height fields. The stroke weight and color don’t matter at this point.

Step 2

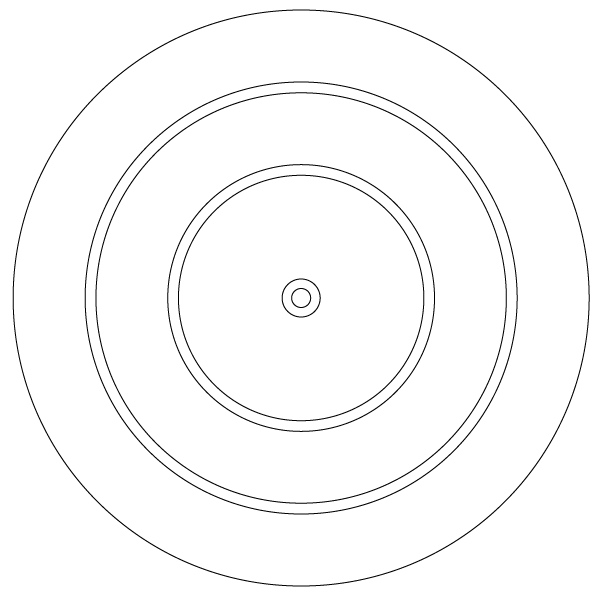

With the circle selected, double-click the Scale Tool. Select Uniform, Enter 75%, and click Copy. With the new circle selected, scale and copy once again, this time entering 95%. Do this four more times, entering these values: 65%, 92%, 15% and 50%. The resulting concentric circles should look something like the image below.

Step 3

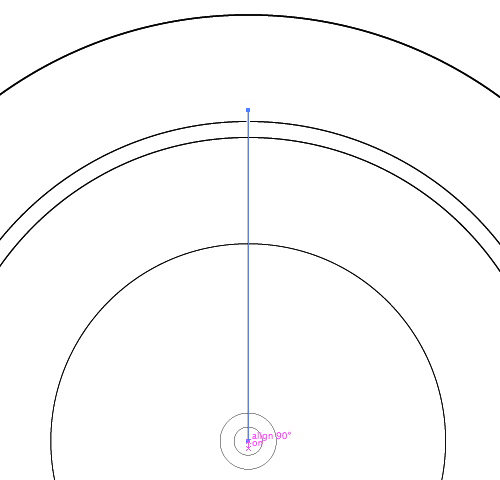

Turn on Smart Guides (View > Smart Guides). Using the Line Segment Tool (), draw a vertical line from the center of the circles to just beyond the top of the first inside ring. Hold down the Shift key to constrain the line to 90°. The Smart Guides will give you visual cues when you are on the center point, and when your line meets/intersects the circle’s path.

Step 4

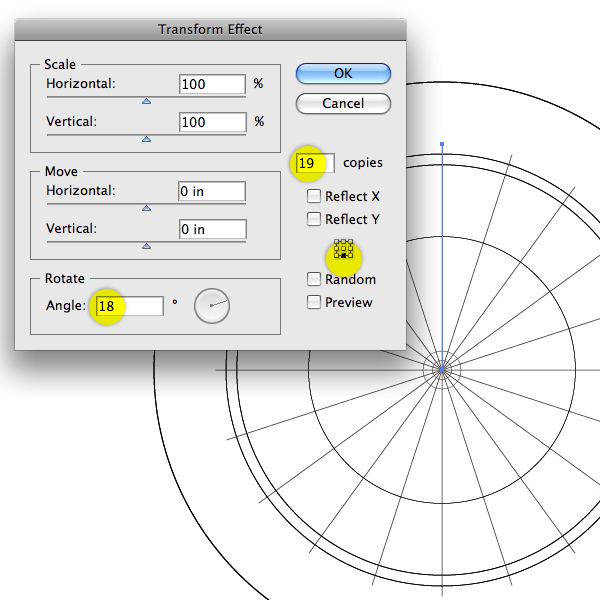

With the line selected, go to Effect > Distort & Transform > Transform. Rotate the line 19 times, for a total of 20. Since 360 degrees (a circle) divided by 20 (the number of segments) is 18, enter 18° in the Angle field. Be sure to click the bottom center point on the Reference Point proxy, so the line will rotate from its bottom point. Check the Preview box to make sure it looks like the image below.

Step 5

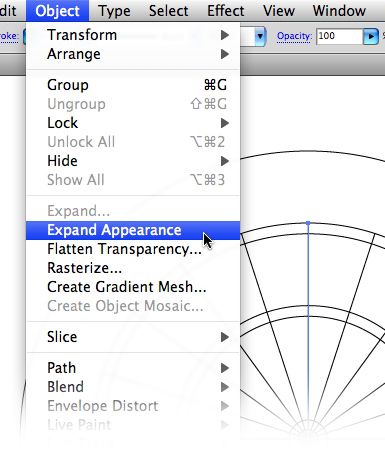

Go to Object > Expand Appearance. The result will be 20 individual lines, rotated around the center point. This is the basic structure of your dartboard.

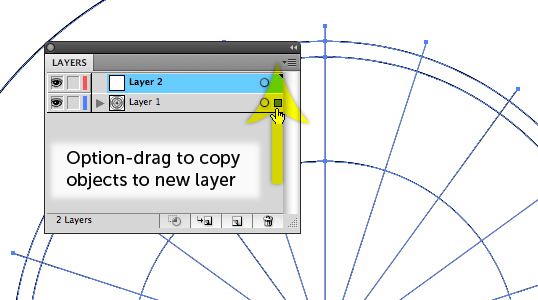

Now it’s time to color. Before that, though, make a copy of the dartboard outlines. First make a new Layer in the Layers panel. Select the paths, hold down Alt and drag the proxy (tiny colored square) up to the new layer to make a copy. Hide that layer for now.

Step 6

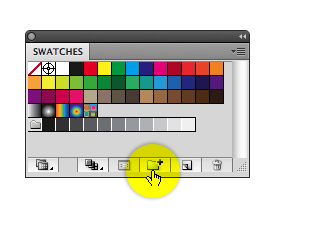

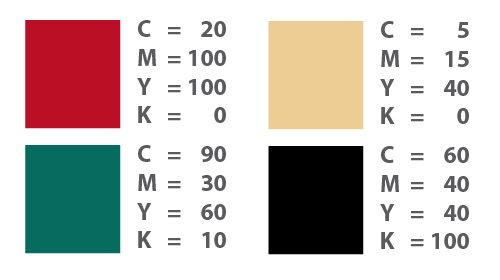

Before coloring the dartboard, decide on a color palette for your illustration. I’ve used these swatches, which approximate the color scheme of a traditional dartboard. Create a new Color Group from the swatches by selecting them in the Swatches panel and clicking the New Color Group icon. You can also create a new Color Group from selected objects in your illustration. Click the Color Panel’s flyout menu, choose New Color Group, then tick the Selected Artwork button.

Step 7

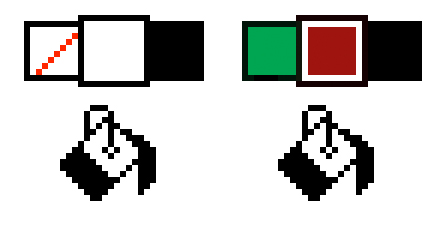

Now select the dartboard structure. If the paths are stroked, change them to a fill and stroke of none. Choose the Live Paint Bucket Tool (K). You’ll see three tiny color swatches above the paint bucket. By default, those swatches will be none, white and black. If your color group was selected beforehand, the swatches will be filled with those in the color group. So make sure you can see three of the colors you created previously.

Step 8

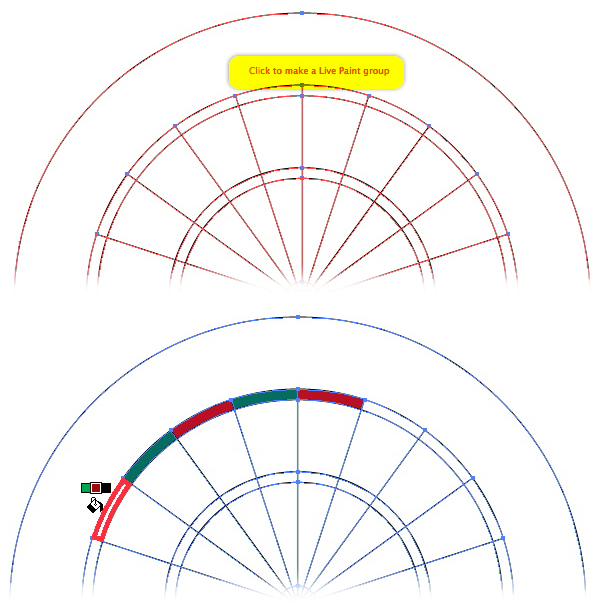

Click within the dartboard outlines to convert them to a Live Paint Group. Now when you hover over each segment, a thick highlight line appears around the shape. Click once with the Paint Bucket to fill that shape with color. To switch to an adjacent color, press the left or right arrow key.

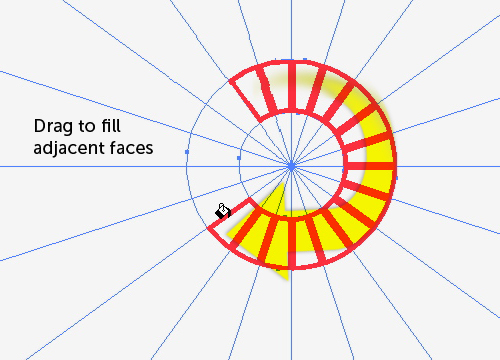

Continue filling each shape, or “face.” TIP: For the red bull’s-eye, you can drag the Paint Bucket across multiple faces to paint more than one at a time.

Your colored dartboard should look like the image below.

PART II: The Wires

Step 1

To make the wires that separate the colored fields on the dartboard, we’ll first create a Graphic Style. Draw a short straight line. Give it a .5-point stroke and a color of 5% black. Select Round Cap in the Stroke panel (middle icon next to the Weight field).

Step 2

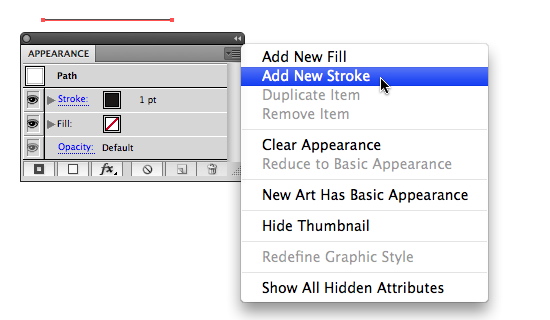

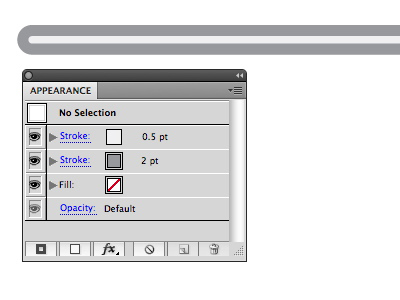

Select the stroke, then from the Appearance panel, choose Add New Stroke.

Change the width of the bottom stroke to 2 points, and make its color 40% black (In CS4, these modifications can be made directly in the Appearance panel). Your double-stroked line should look like the image below

Step 3

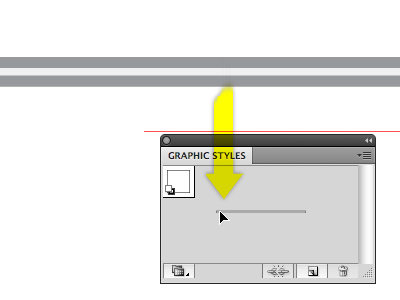

Drag the double-stroked line into the Graphic Styles panel to create the new style. If you like, you can double-click its thumbnail and give it a name.

Step 4

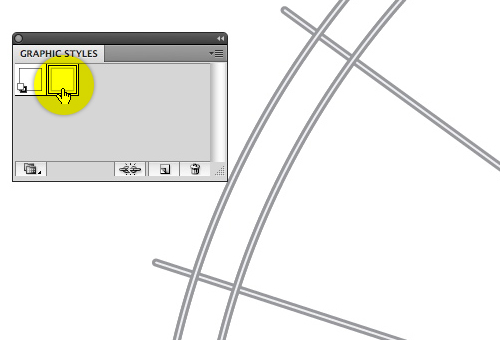

Remember the copy of the dartboard outlines you made back in part 1? Show and select it, then click on the new Graphic Style to apply it to the lines.

Step 5

We don’t want the radial lines meeting in the center, where the bull’s eye is, so take the Scissors Tool (C) and cut away the excess. Use the Direct Selection Tool (white arrow) to select and delete the extra bits.

Step 6

You should now have one layer with the colored dartboard, and another layer containing the wire separators. The illustration should look like the image below.

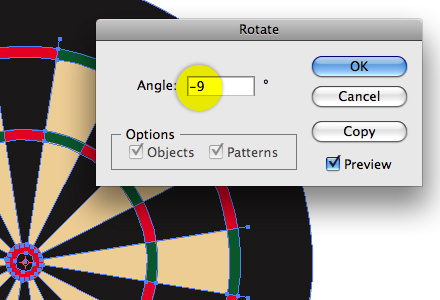

Select all, then double-click the Rotate Tool. We want a black section to be centered vertically, so enter -9° (half the rotate angle used in Part I).

PART III: The Numbers

Step 1

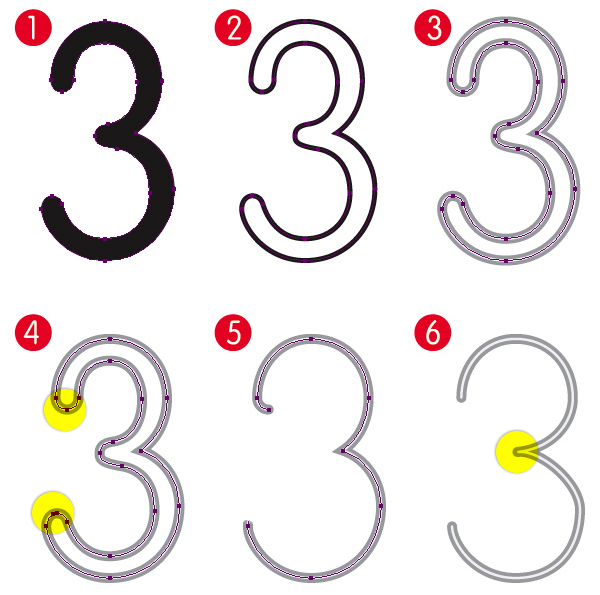

The numbers on a traditional dartboard are made of wire and appear to be bent by hand. You will be hard-pressed to find a font that will look just like a bent wire, but you can modify an existing font and apply the wire Graphic Style to it. Here I have used VAG Rounded, following these steps:

1. Convert type to outlines
2. Switch Stroke and Fill (Shift + X)
3. Apply the “Wire” Graphic Style
4. Cut path
5. Delete inside path
6. Tweak path with the Pen Tool

see full tutorial here…
